ZRP Can Am X3 High Clearance Billet Radius Rod Set (6)

$919.00$999.00

  • High Clearance / More Ground Clearance
  • Added Strength
  • Prefect Fit
  • Made for Rugged Terrain
  • Bolt on Installation / Install Within A Few Minutes.
Clear

Description

Can Am X3 Radius Rods

  • High Clearance / More Ground Clearance
  • Added Strength
  • Prefect Fit
  • Made for Rugged Terrain
  • Bolt on Installation / Install Within A Few Minutes.

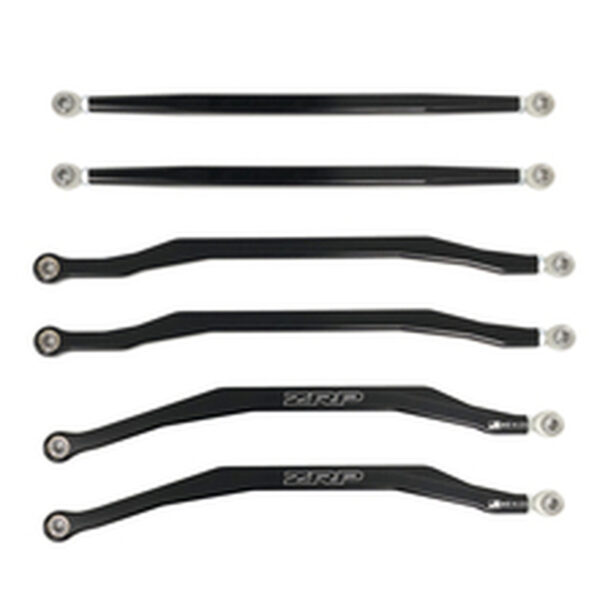

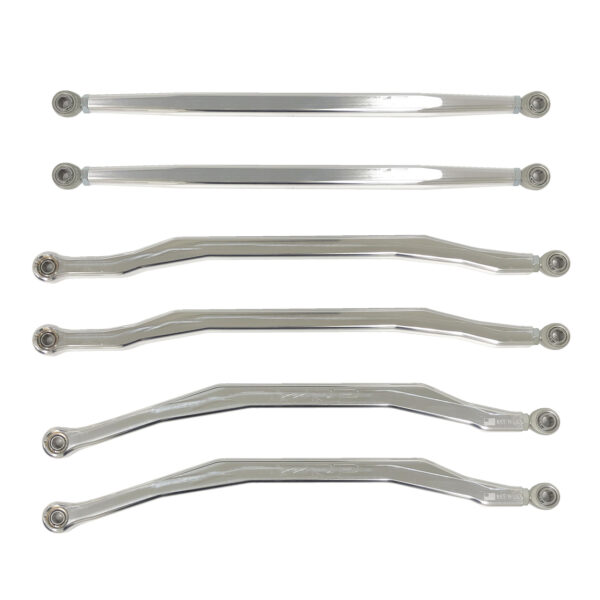

Set of 6 High Clearance Heavy Duty Radius Rods for the Can Am X3.

*ALL ZRP CAN AM Maverick X3 RADIUS RODS COME PRESET TO FACTORY LENGTH*

We offer 64” and 72”.

Fitment-2017+ Can-Am X3 (XDS, XRS, XMR, XRC).

We designed our billet radius rods to be true high clearance while adding additional strength. These rods are race-proven and designed for racing demands such as Worcs, Ultra4, and Best in the Desert.

These are made in-house and tested in all our races in the USA!!!

HEIM JOINTS

JMX: Our top-of-the-line Heim. 3-Piece precision Heim with Teflon liner. 18,000lb load strength. For extreme duty use. This is for the guy the wants the best of the best.

Pre-Installed Hardware included

  • (4) FK uniball bearings w/snaprings
  • (8) FK Heims
  • (16) ZRP Heim misalignments
  • (8) ZRP uniball misalignments w/orings

Add strength while improving ground clearance. Please get rid of that sloppy X3 rear end by pairing our radius rods with our radius rod plate.

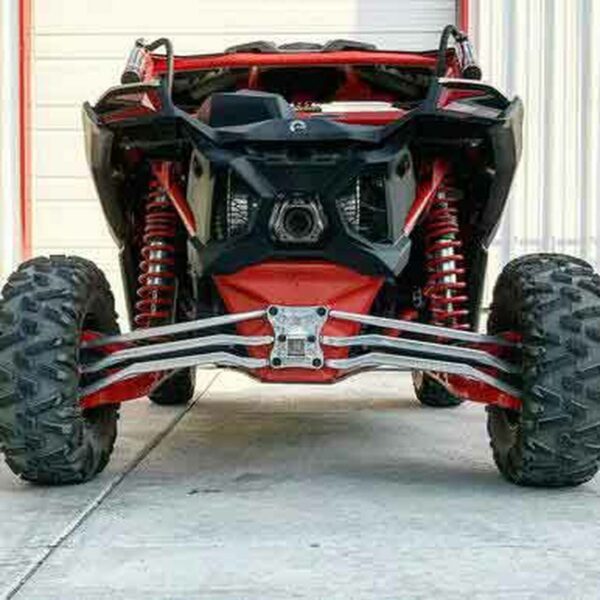

The Can-Am X3 radius rods were designed as a perfect fit for your X3, offering more ground clearance and more strength. This radius rod set bends up from the X3 hub to its frame to give you more ground clearance.

With them, you can drive over rocks, sticks, and crap when you go off the road. When you dodge stones and sticks, they will not hang on your rear radius arms. They are also stronger than stock arms, so they do not break when you drive on rugged terrain.

High-Quality Heavy Duty Billet Aluminum or Steel

The use of billet aluminum makes the radius road set stronger than stock radius rods. In addition, they feature solid aluminum bars that are almost impervious to damage. These bars have a high strength-to-weight ratio, so they do not add significant weight to your X3.

With the high-strength bars, you can take your X3 on a ride off the road in rocky areas or areas with rugged terrain. You can also choose the black radius rods with a thick steel plating to make them indestructible when you drive off the road.

Bolt-On Installation

The Can-Am X 3 radius rods are ready to install. You can install it within a few minutes. The set of six bars are preset to factory length.

Perfect Fit and Finish

Each ZRP bar offers a perfect fit for your UTV. They have a smooth finish that matches the beauty of your UTV. The black or aluminum finish also makes the bar easy to handle during installation.

The finish is strong, so the rods can withstand scratches when you drive off the road. Your UTV’s rear is most probably black so that the black finish will fit in like the stick rods. If you choose the aluminum radius roads, they will also look like the stock rods.

Fitment

We offer 64 and 72-inch radius roads. These rods fit all Can-Am X3 models 2017 or later. They are ideal for model XDS, XRS, XRC, and XMR.

The roads have enough strength to handle 15,000 pounds, making them ideal for high-demand races such as Best in the Desert, Worcs, and Ultra4. You can also take them for a race in a rocky upcountry, and they will withstand the rugged environment there.

FK Rod Ends

Our billet radius set doesn’t use bushings. Instead, it has FK Rod Ends, which makes it more flexible. Unlike bushings, which only allow horizontal movement, the FK Rod Ends allow both lateral and horizontal movements.

This is ideal for serious street and off-road UTVs. In addition, the flexibility protects the suspension system of your UTV.

FK Rod Ends are more durable than bushings. So you may only need to replace them after a bad crash or if you notice the ball is loose in the road end housing. For even more flexibility, our radius rods have FK uni-ball bearings w/snaprings and FK heims. Further, our ZRP Heim misalignments and ZRP uniball misalignments w/O-rings ensure the rods are always in the right shape for optimal performance off the road.

Set of Six

Our radius rods come as a set of six pieces for maximum strength, and it also makes them easier to install. We recommend using them together with our Radius Rod Plate and ZRP’s Dog Bones to create the best rear end set up.

The same set of six offers great fitment for all two-door and four-door UTV. Whether you pick the black anodize or raw finish billet aluminum radius rods, the six rods fit together for a perfect ride off the road. In addition, using these six rods will make your ride smooth as you will not feel the effect of rocks and rough terrain on your UTV.

Additional information

Weight N/A
Wheelbase

64", 72"

Finish

Aluminum, Black
