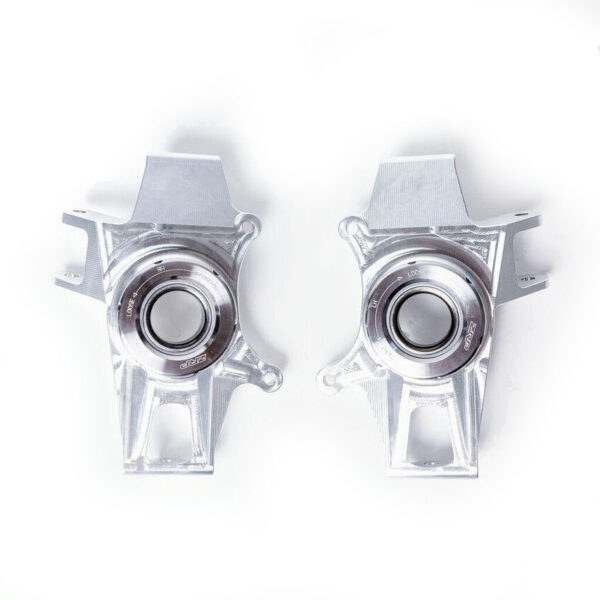

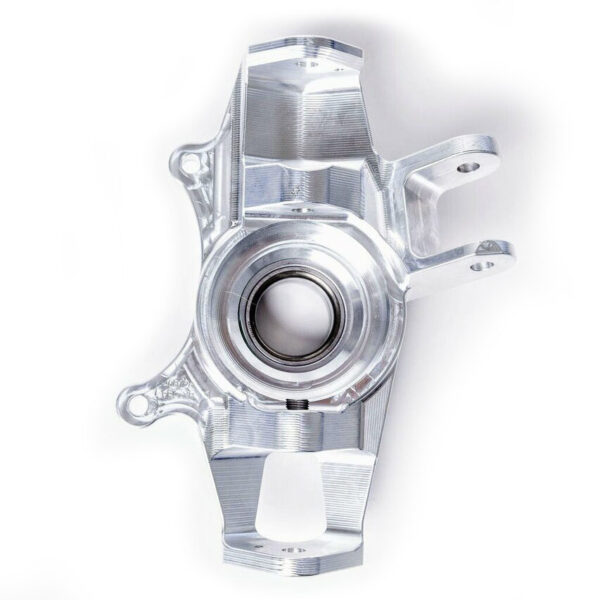

ZRP 7075 RZR Front Double Shear Capped Knuckle Set



We have added a threaded cap to our double shear front knuckles for additional press-out strength. Our capped knuckles have been Lab tested to 86,000 lbs over the factory 27,000 lbs.

Our double shear front knuckles will ONLY work with standard 7/8 uniballs or rod ends , and uniball cups These will NOT work with standard balljoint a-arms.

Additionally, these knuckles feature a stronger double shear tie rod mounting point. These knuckles are only compatible with aftermarket tie rods that use a 5/8” heim on the knuckle side.

Our knuckles include the following (per set)

  • L & R double shear front knuckle
  • (4) ARP bolts
  • (8) 7/8 uniball misalignment spacers
  • (4) anti rotate locking caps w/screws
  • LH & RH threaded cap
  • Threaded cap removal/install tool
  • Wheel bearings installed & torqued

Additional information

Weight 2.5 lbs

Pro XP, RS1/XP 1000, Turbo S
