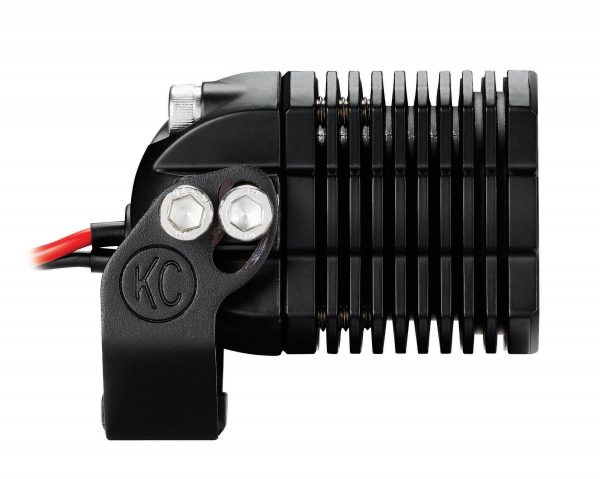

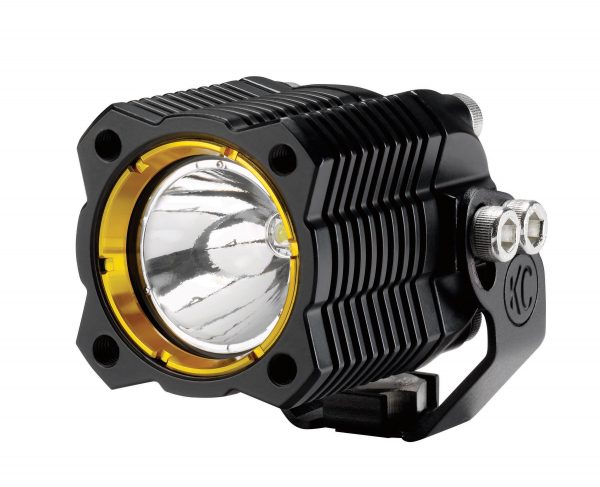

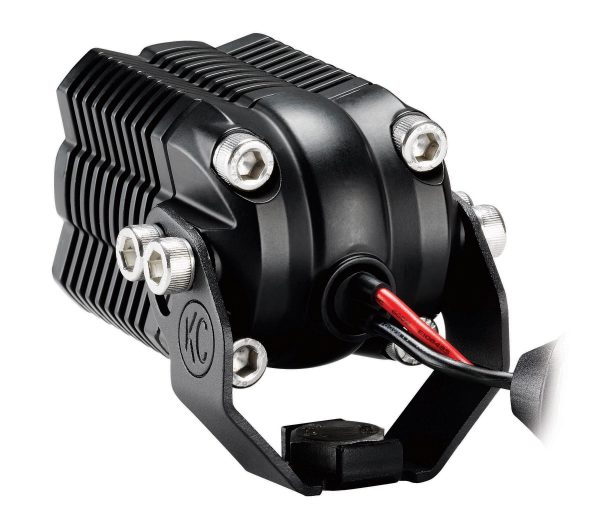

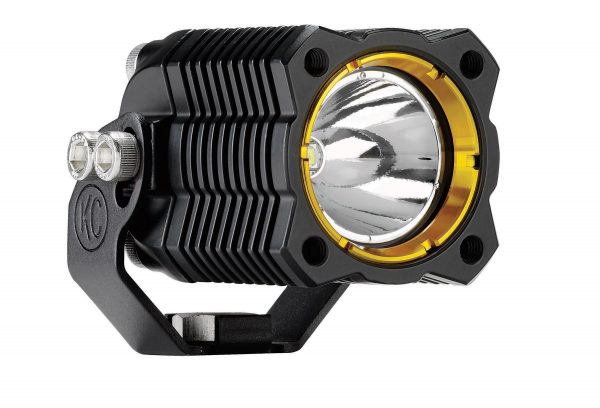

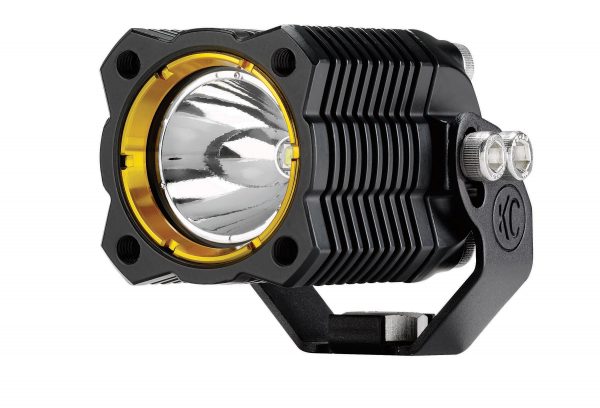

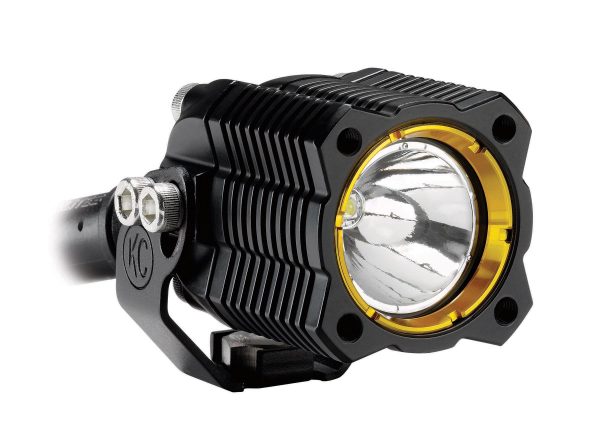

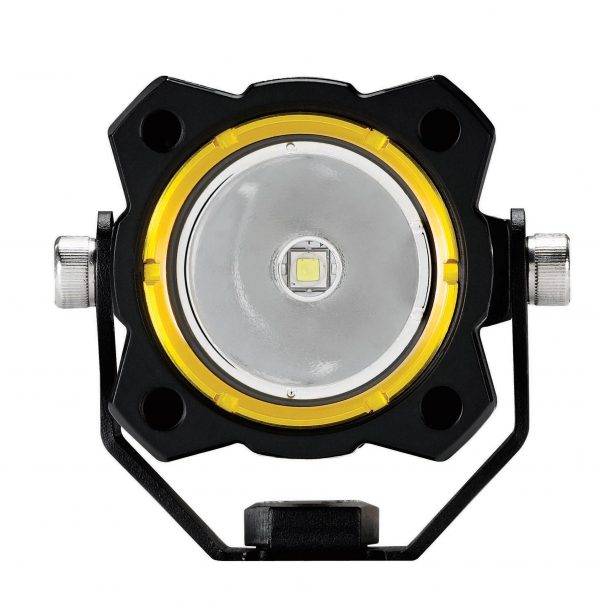

KC FLEX™ Single LED feature bright CREE LEDs in a spot or spread beam pattern inside a compact, rugged Aluminum housing with precision reflectors. Pair complete with (2) 10w Flex LEDs, complete wiring harness, and u-brackets for easy mounting
-2 x 10W KC FLEX™ Single LEDs
-Die-Cast Aluminum Housings
-KC Precision Reflector Optics
-Integrated Power Lead
-Spot Beam or Spread Beam
LIGHT PERFORMANCE(PER LIGHT)
-RAW Lumens: 975 lm
-LUX @ 10 meters: Spot- 250 lx, Spread- 170 lx
-Candela: Spot- 25,000 cd, Spread- 17,000 cd
-Beam Distance (Meters): Spot- 316m, Spread- 261m
-LED Source: CREE XM-L2 U2
-Amp Draw: 1.0A
-IP Rating: IP68
-Product Dimensions: W – 2.25″ x H – 2.45″ x D – 2.92″

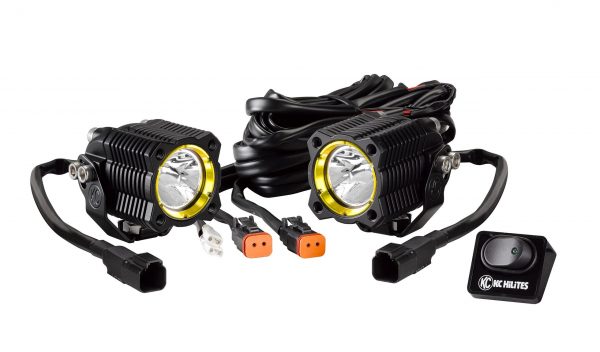

Parts in every system
-(2) 10W KC FLEX™ Single LED Lights
-Deluxe Wiring Harness with weather proof connectors and light switch
OPTICAL PERFORMANCE AND LED EFFICIENCY
Combining KC precision injected reflector optics and efficient LEDs to deliver 250 lx @10m of race performance light output and optical clarity.
EXPANDABILITY FOR CUSTOM LIGHT ARRAYS
Comes complete with a u-bracket that mounts FLEX LED Singles easily in tight spaces.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.
Spread Beam- Provides a wider beam of light that increases peripheral lighting for an improved range of visibility.
BAJA 1000 RACE TESTED STRENGTH & DURABILITY
Using an IP68 rated Die-Cast Aluminum Housing with a hard coated polycarbonate lens, FLEX LED Singles are tested and approved by race teams for extreme durability in harsh terrains.
Available Part Numbers
• KC FLEX™ Single LED Spread Beam System – KC #269
• KC FLEX™ Single LED Spot Beam System – KC #270
