Description
KC HiLiTES C-Series LED Light Bars feature bright and efficient CREE LEDs with combo 8° Spot and 90° Spread reflectors in a curved orientation for a wider area of coverage. Available in 40″-50″ widths, perfect for front bumper, and Overhead lighting applications on Jeeps, Trucks, UTVs and more.
FEATURES
-40″ or 50″ C-Series Curved LED Dual Row Light Bar
-Precision reflectors with forward facing LEDs
-Combo Beam Pattern: 8° Spot & 90° Spread
-Curved Light Bar Design for a Wider Area of Coverage
-Extruded Aluminum Housings
-GORE® Membrane Barrier
LIGHT PERFORMANCE
-RAW Lumens: 40″= 21,600 lm, 50″= 27,000 lm
-LUX @ 10 meters: 40″= 2,800 lx, 50″= 3,200 lx
-Candela: 40″= 280,000 cd, 50″= 320,000 cd
-Beam Distance (Meters): 40″= 1,058m, 50″= 1,131m
SPECIFICATIONS
-Wattage: 240W-300W
-LED Source: CREE LED
-Color: 6000K
-Amp Draw: 20.0A-25.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: 40″ = L – 41.38″ x H – 3.09″ x D – 3.40″; 50″ = L – 51.38″ x H – 3.09″ x D – 3.40″

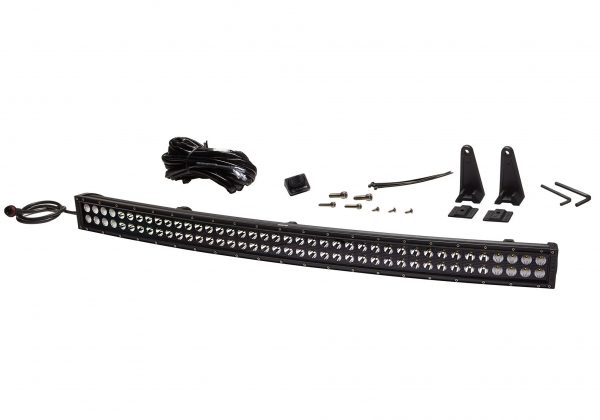

Parts Included with C-Series Light Bars
-Deluxe Wiring Harness w/ Illuminated LED Light Switch
-Die-Cast Mounting Brackets with hardware
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
COMBO BEAM PATTERN AND CURVED DESIGN ADVANTAGES
When it comes to total road coverage the curved C-Series LED light bar features a combo beam with perfectly angled 8° Spot & 90° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges. The curved design provides an even greater and more complete light coverage, providing the widest field of view to enhance night time vision.
DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
Available Part Numbers
• 40″ C Series CR40 Curved LED Light Bar Combo Beam – KC #93371 (Spot/Spread Beam)
• 50″ C Series CR50 Curved LED Light Bar Combo Beam – KC #93381 (Spot/Spread Beam)
