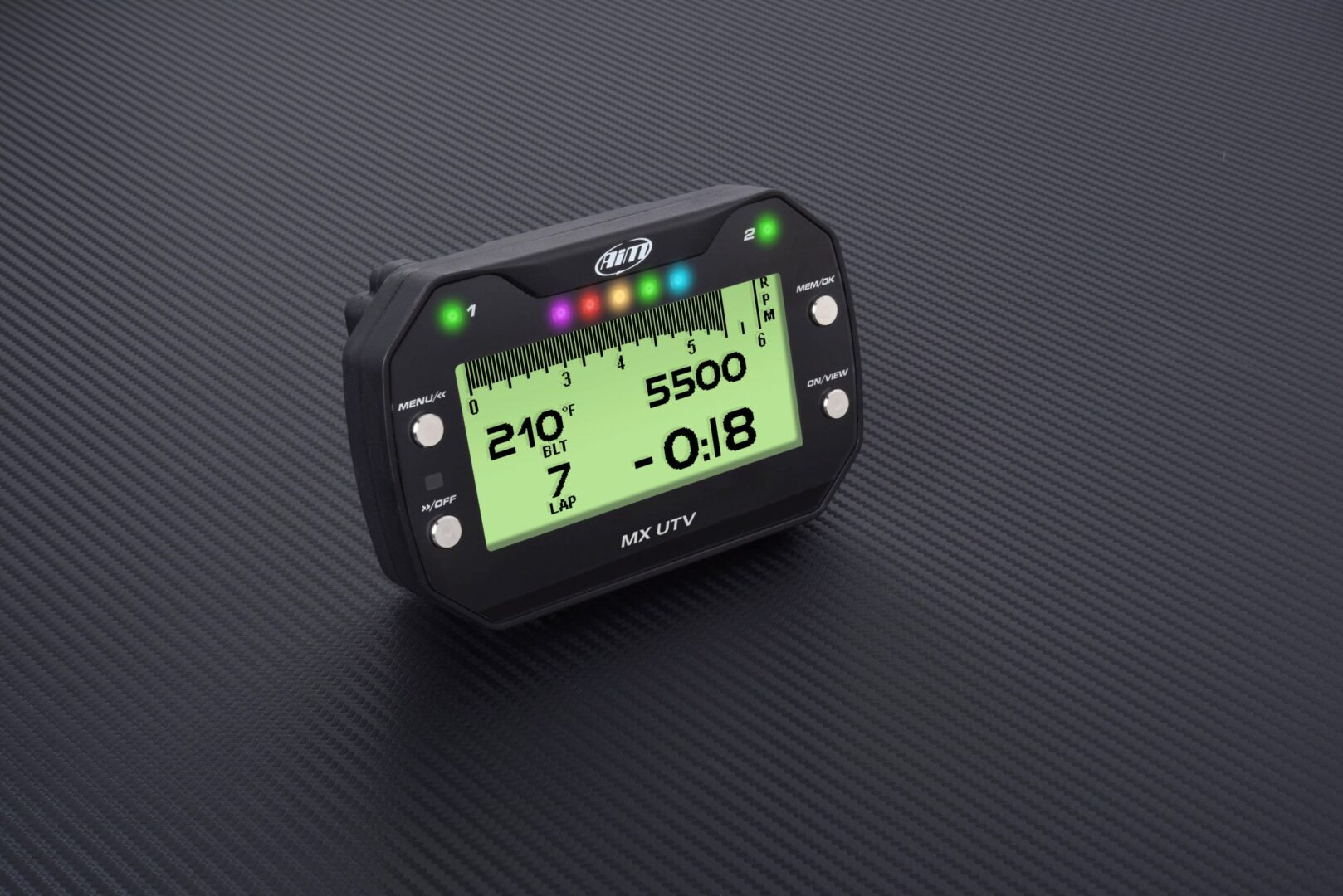

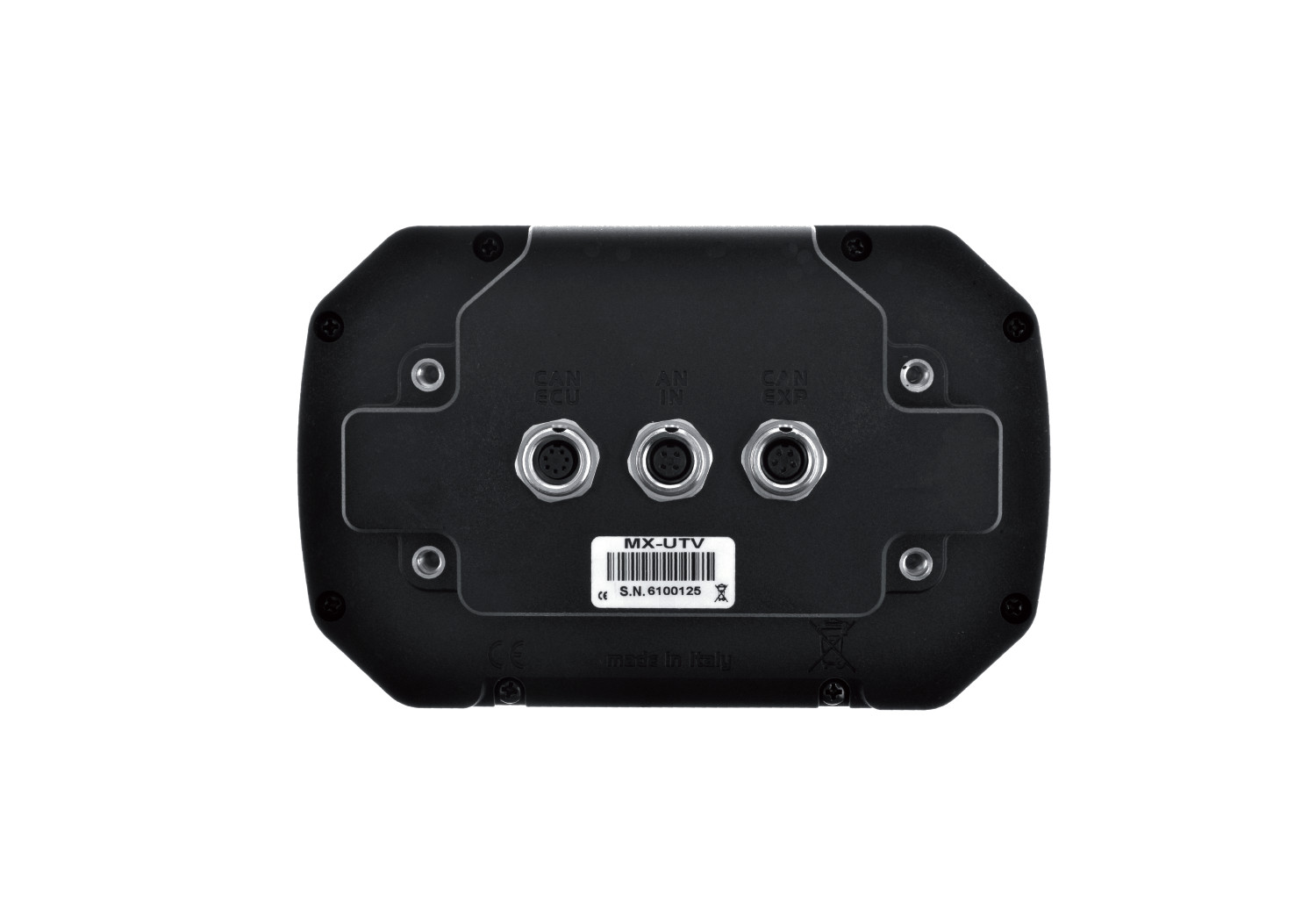

AiM Sports MX UTV Dash Logger

$599.00

  • Dash Logger Developed Just for UTV’s
  • Expandable with a Wide Array of Peripherals
  • Belt Temperature Sensor
  • Integrates with GPS and Camera Displays

Description

MX UTV: The dash logger dedicated to the UTV world

MX UTV is the new AiM dash logger specifically designed for the off-road world, in order to offer our best technology to those racers whome crave for running in absolute freedom.  MX UTV acquires and shows the following important information:

  • data coming from your ECU
  • transmission belt temperature, by using the infrared sensor included in the kit
  • GPS Data: speed, position, time of the day and, with a precision of 1/100 sec, the lap times, thanks to the powerful built-in GPS Module.

Everything Right Under Control

ECU: set it up on your device!

MX UTV allows you to select your vehicle brand and type directly from the dash menu, in order to get the following data from the different ECUs:
Models Channels

Models Channels
Polaris RZR Speed, RPM, Gear, ECT, TPS, Brake SW, Fuel rate
Polaris RZR turbo Speed, RPM, Gear, ECT, TPS, Brake SW, Fuel rate, Boost Pressure, Charge Air temp
CAN-AM Speed, RPM, Gear, ECT, TPS, BrakeSW, Instant fuel flow
CAN-AM turbo Speed, RPM, Gear, ECT, TPS, BrakeSW, Instant fuel consumed, Boost pressure, Intake Air Temp
Yamaha YXZ 2016 Speed, RPM, Gear, ECT
Yamaha YXZ 2017 Speed, RPM, Gear, ECT, TPS, BrakeSW
Arctic Cat Wildcat Speed, RPM, Gear, ECT, TPS, BrakeSW

Transmission belt temperature, no more worries

The transmission belt temperature is one of the main concern for UTV drivers.  Thanks to the infrared temperature sensor, included in the kit, it is possible to constantly check the temperature, reading it directly on the display.  Two RGB alarm LEDs will turn on when the temperature gets close to the critical level.

Choose your optimal setting: Gear Shift Light or Predictive Lap Time

The top of the dash features 5 LEDs, that can be set up for 2 different functions: gear shift light or predictive lap time.  In case you configure the LEDs for Gear Shift Lights, they will help you in choosing the best instant to shift gear.  In case you configure the LEDs as Predictive Lap Time, they will give you a constant idea of how you are improving your lap time, every few feet.

Fantastic readability

The wide LCD display has a freely configurable RGB backlight, which gives you the possibility to choose among eight different colours, and a light sensor that automatically switches on the backlight with low light conditions.

Always find your track and your data as well

Thanks to the integrated GPS Module, MX UTV automatically recognizes the track you are racing on and calculates lap times and your position on the track with high precision. Besides, thanks to the auto-learning mode, MX UTV will anytime be able to add new tracks into its internal tracks database. All the acquired data, from the ECU, from the Belt Temp Sensor and from the GPS are stored into a huge 4 GB internal memory, that can log your data for several thousands of hours.

Wireless data download with Wi-Fi connection

Download all your data just wirelessly, for an even more practical usage between your track-day sessions or during your race weekends. You won’t worry anymore about cables that you may have forgotten at home: using a secure 802.11 Wi-Fi connection, all your data will be stored straight on your PC, ready to be deeply analyzed via our free software Race Studio 3.  Via Race Studio 3, indeed, graphs, histograms, and tables will help you study your performance, providing an objective support to avoide mistakes and improve performances.

Expand your system according to your needs

Using the built-in CAN bus, you can add expansion modules to the MX UTV to increment the performance and the data acquired:

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion. LCU-One CAN

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger. SmartyCam HD Rev.2

Additional information

Weight N/A
Vehicle

Polaris RZR, Can Am Maverick, Yamaha YZX
